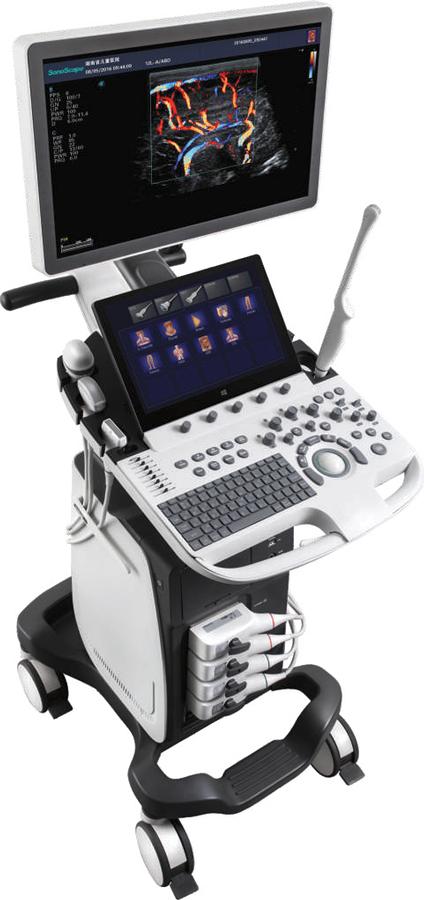

Ultrazvuk SonoScape P50

Šifra artikla: UZ1225

Tehničke karakteristike:

  • 21,5″ LED zaslon visoke rezolucije

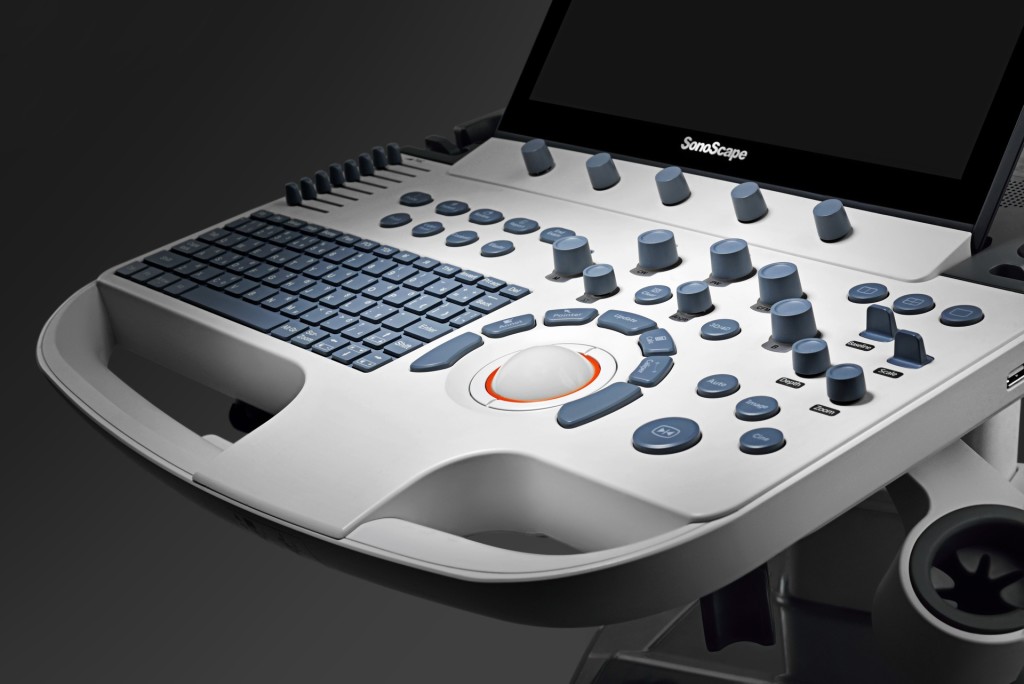

  • 13,3″ zaslon osjetljiv na dodir
  • Pet aktivnih priključaka za sonde
  • Jedan priključak za CW sondu
  • WiFi
  • USB priključci
  • Pohrana hard disk 500 GB
  • Modovi prikaza: B (2B & 4B)/ M/ THI/ CFM/ PDI/ DirPDI/ PW/ HPRF/ CW
  • Multi-beam technology
  • Pulse Inversion Harmonic Imaging
  • LGC: Lateral Gain Compensation
  • μ-scan (ispravljanje točkastih artefakata)
  • Auto (M-tuning: optimizacija slike jednim pritiskom tipke za 2D/ Color/ PW)
  • Spatial Compound Imaging
  • Real-time 2D Panoramic Imaging
  • Color Doppler Panoramic Imaging
  • Trapezoidal Imaging
  • Freehand 3D Imaging
  • Auto NT
  • Color M mode
  • Anatomic M mode
  • Tissues Doppler Imaging
  • Auto IMT
  • Auto EF
  • S-Guide
  • Stress Echo

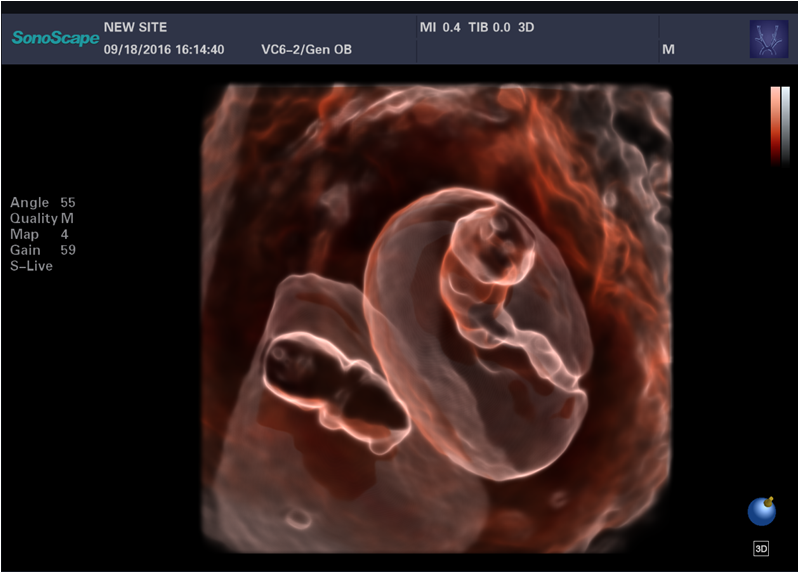

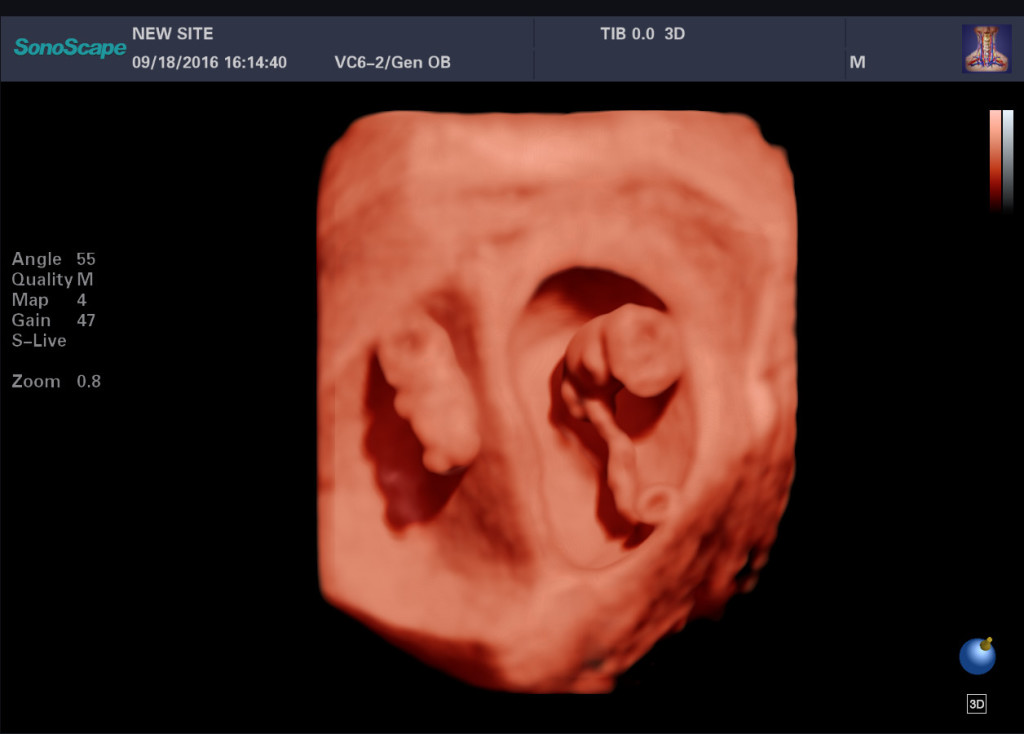

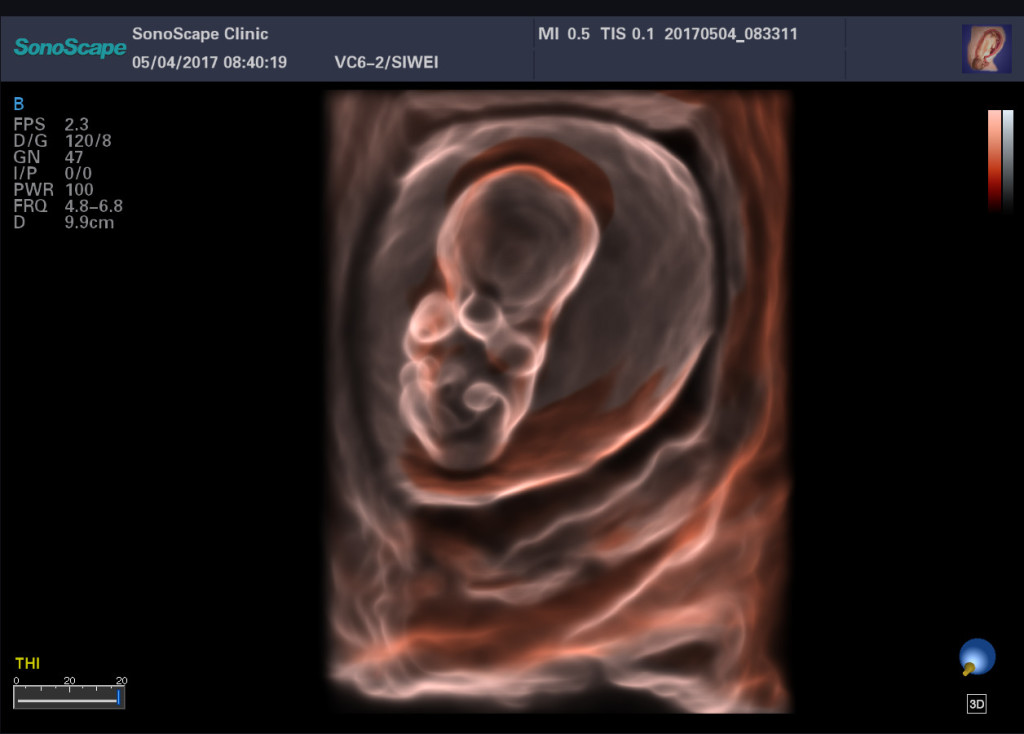

  • Static 3D
  • 4D
  • S-Live (S-Live/ S-Live Silhouette)

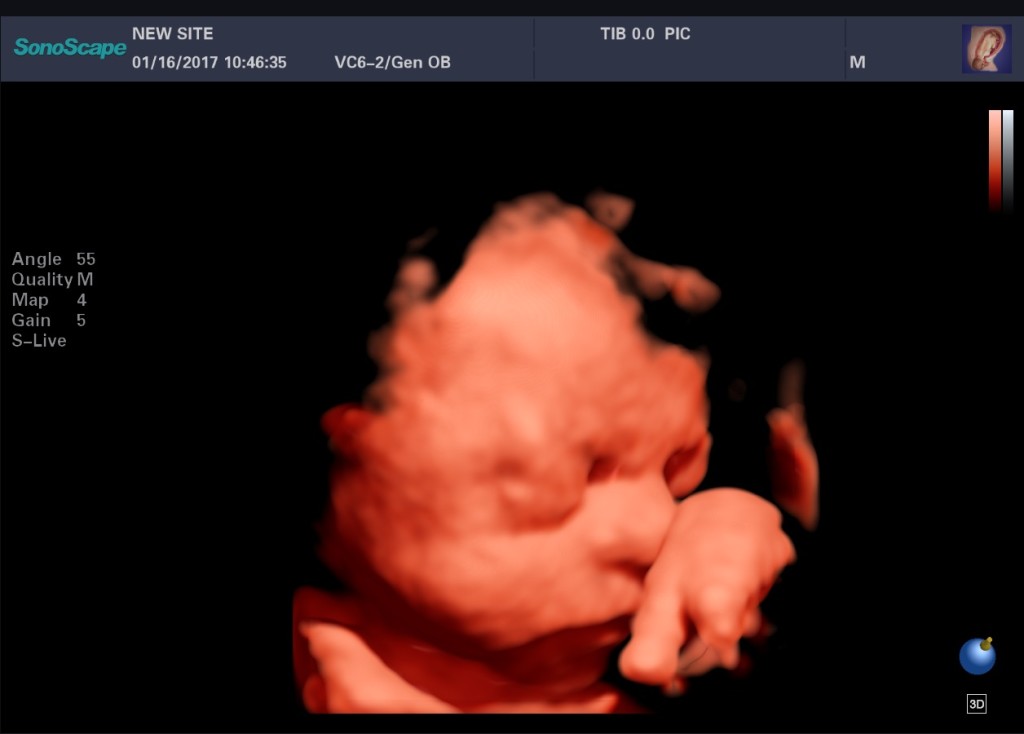

  • Auto face
  • C-xlasto: Strain elastografija
  • VIS-Needle: poboljšana vidljivost igle u tkivu
  • DICOM 3.0: Store/C-Store/Worklist/MPPS/ Print/ SR / Q&R
  • Držač endokavitalne sonde
  • Težina: 92 kg
  • Dimenzije:
    • 743 x 568 x 1360 mm

Opcije:

  • Contrast Imaging

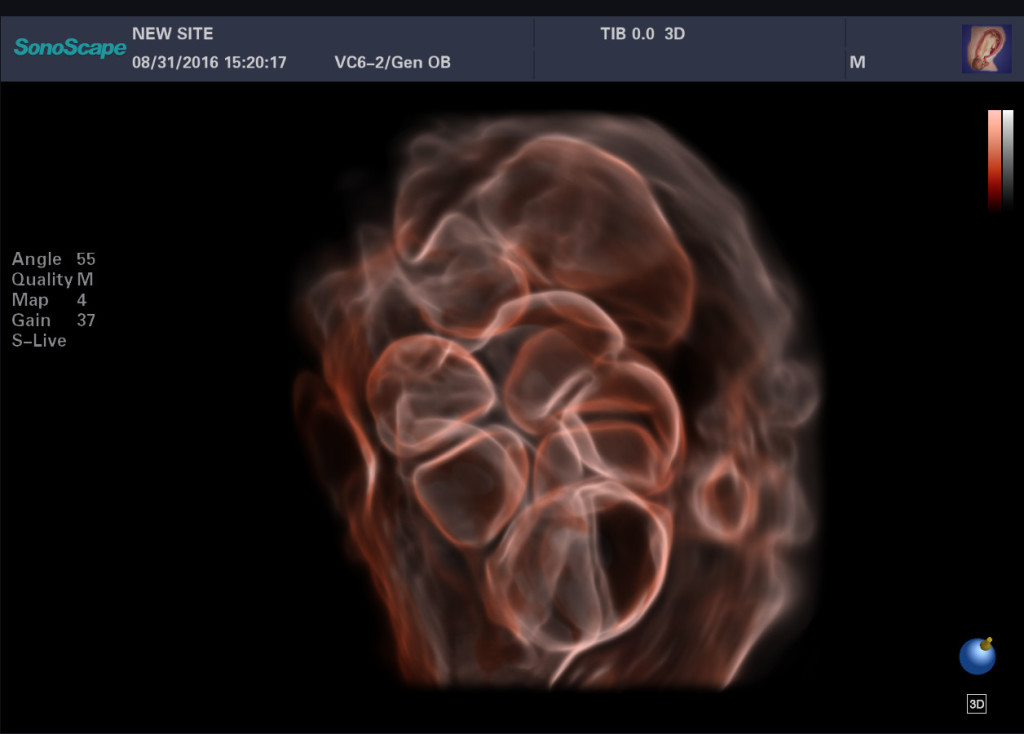

  • Auto Volume Calculation (AVC) Follicle
  • EKG paket (Hardware/ Software/ Kabeli)
  • S-Depth
  • Video printer
  • Grijač gela
  • Baterija
  • Nožna pedala
  • Ugrađeni DVD/CD snimač

Dostupne sonde:

  • Linearna sonda L742 (Vascular, Small parts, MSK etc.), 4-16 MHz/ 38 mm
  • Linearna sonda 12L-A (Vascular, Small parts, MSK etc.), 3-17 MHz/ 52 mm
  • Linearna sonda 12L-B (Vascular, Small parts, MSK etc.), 3-17 MHz/ 38 mm

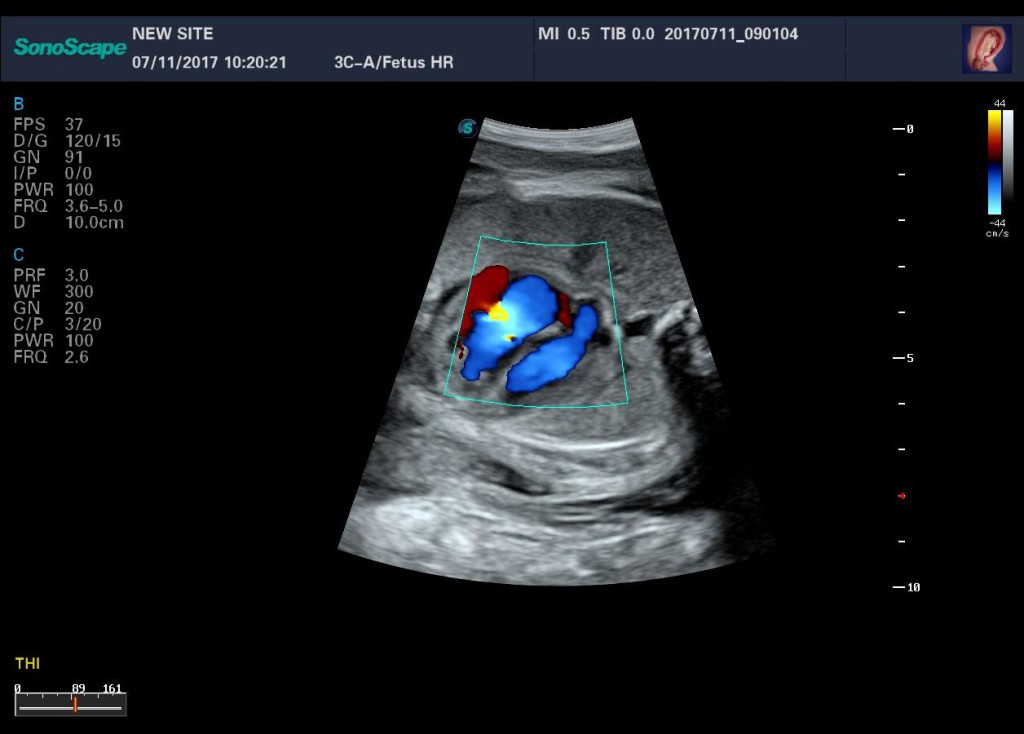

  • Konveksna sonda 3C-A (Abdominal, Obstetrics, Gynecology), 1.0-7.0 MHz/ R50 mm
  • Konveksna sonda C1-6 (Single crystal) (Abdominal, Obstetrics, Gynecology), 1.0-8.0 MHz/ R50 mm
  • Konveksna sonda C613 (Cardiology, Pediatrics),3-15 MHz/ R14mm

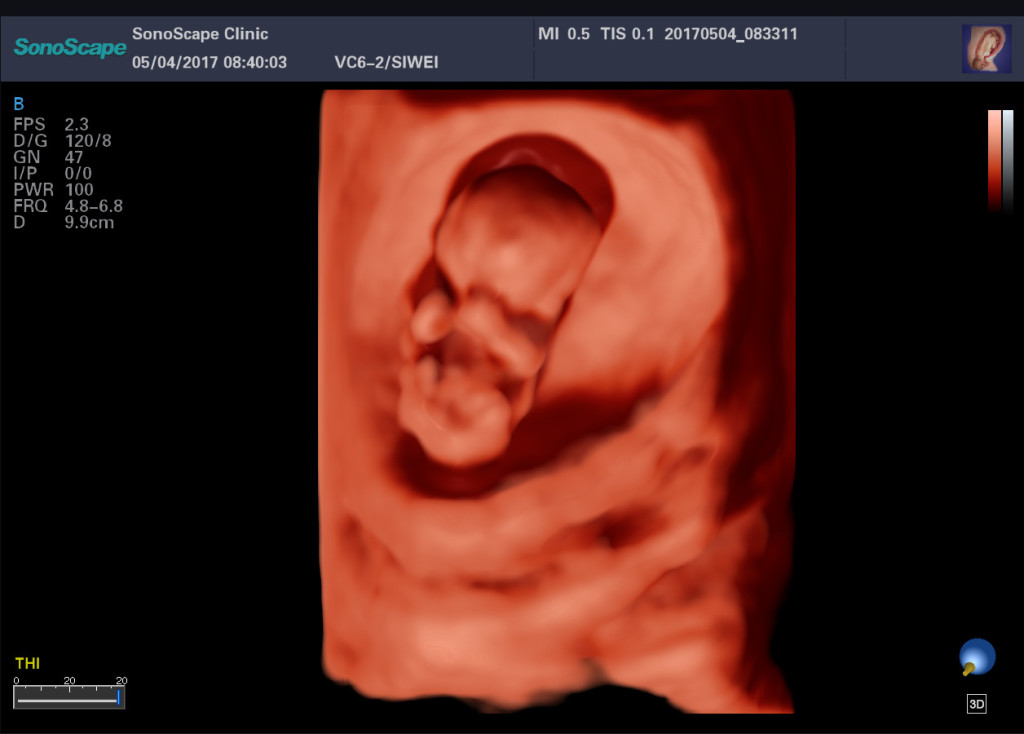

  • Volumna konveksna sonda VC6-2 (Obstetrics, Abdominal, Gynecology), 2-6.8 MHz/ R40 mm
  • Sektorska sonda 4P-A (Cardiac, Transcranial), 1.0-5.4 MHz
  • Sektorska sonda 7P-A (Cardiac, Transcranial, Infant),2-9MHz
  • Sektorska sonda S1-5 (Single crystal) (Cardiac, Transcranial), 1.0-7.0 MHz
  • Endokavitalna sonda 6V3 (Gynecology, Obstetrics, Urology), 3-15 MHz/ R10 mm
  • Endokavitalna sonda 6V3A (Gynecology, Obstetrics), 3-15 MHz/ R8 mm(Vaginal Dilator: EDVS)
  • Endokavitalna sonda 6V7 (Gynecology, Obstetrics), 3-15 MHz/ R10 mm

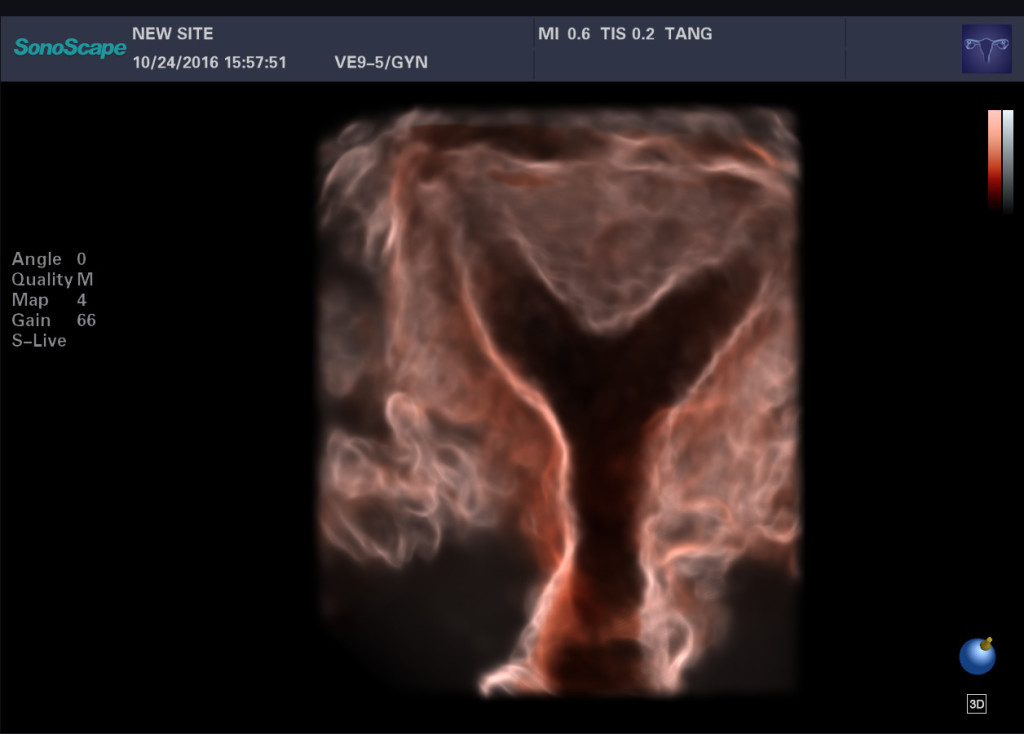

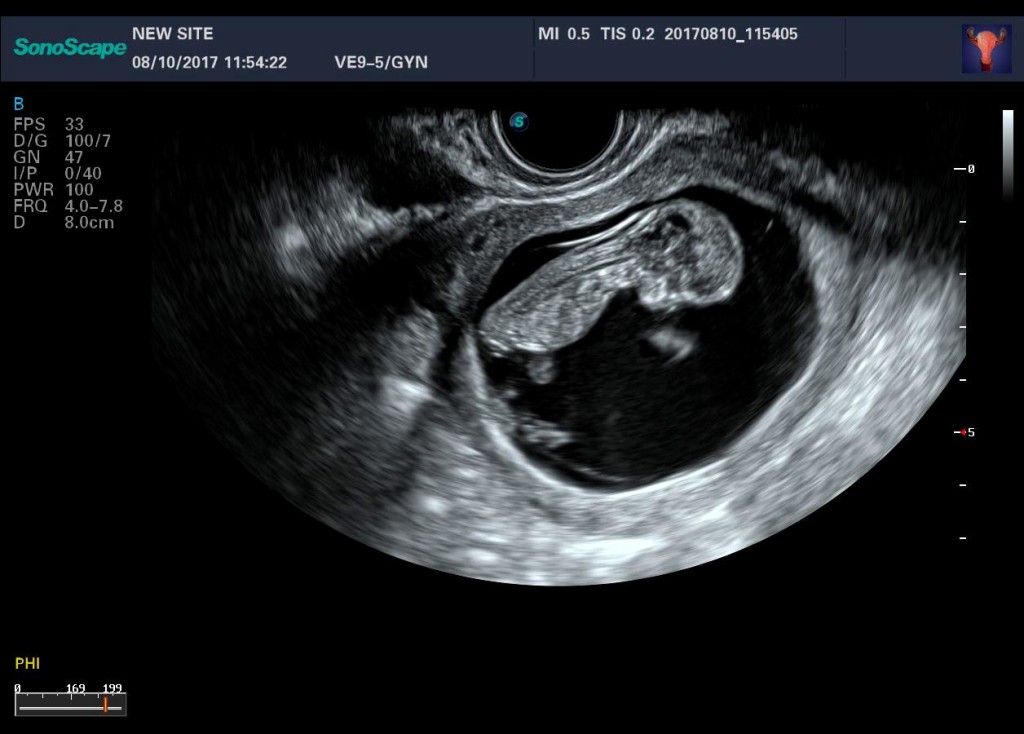

  • Volumna endokavitalna sonda VE9-5 (Obstetrics, Gynecology, Urology), 2-13 MHz/ R10 mm
  • Sonda biplane BCL10-5 (Urology), Convex 3.9-11 MHz/ R10mm, Linear 6-15 MHz/ 60mm
  • Sektorska trans-ezofagealna sonda MPTEE (Cardiac), 4-13 MHz
  • Linearna sonda 10I2 (Intra-operative), 4-16 MHz/ 25mm
  • Linearna sonda 12LI-A (Intra-operative), 4-16MHz/ 33mm
  • Linearna sonda 12LT-A (Intra-operative), 4-16MHz/ 33mm
  • Konveksna sonda 6CT-A (Intra-operative), 3-15MHz/ R40mm
  • Konveksna sonda 6CI-A (Intra-operative), 3-15MHz/ R40mm
