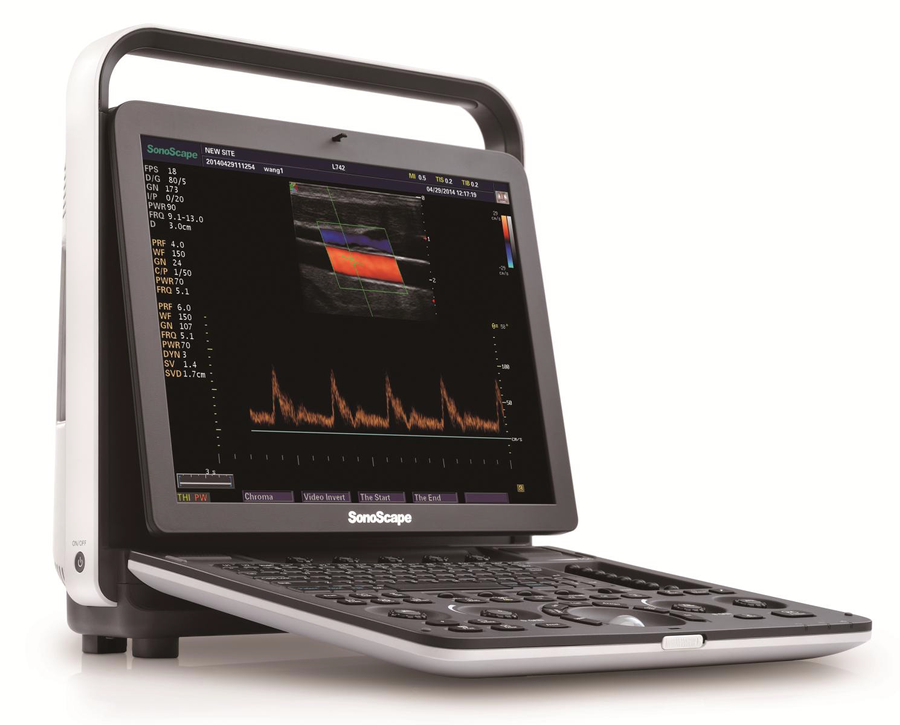

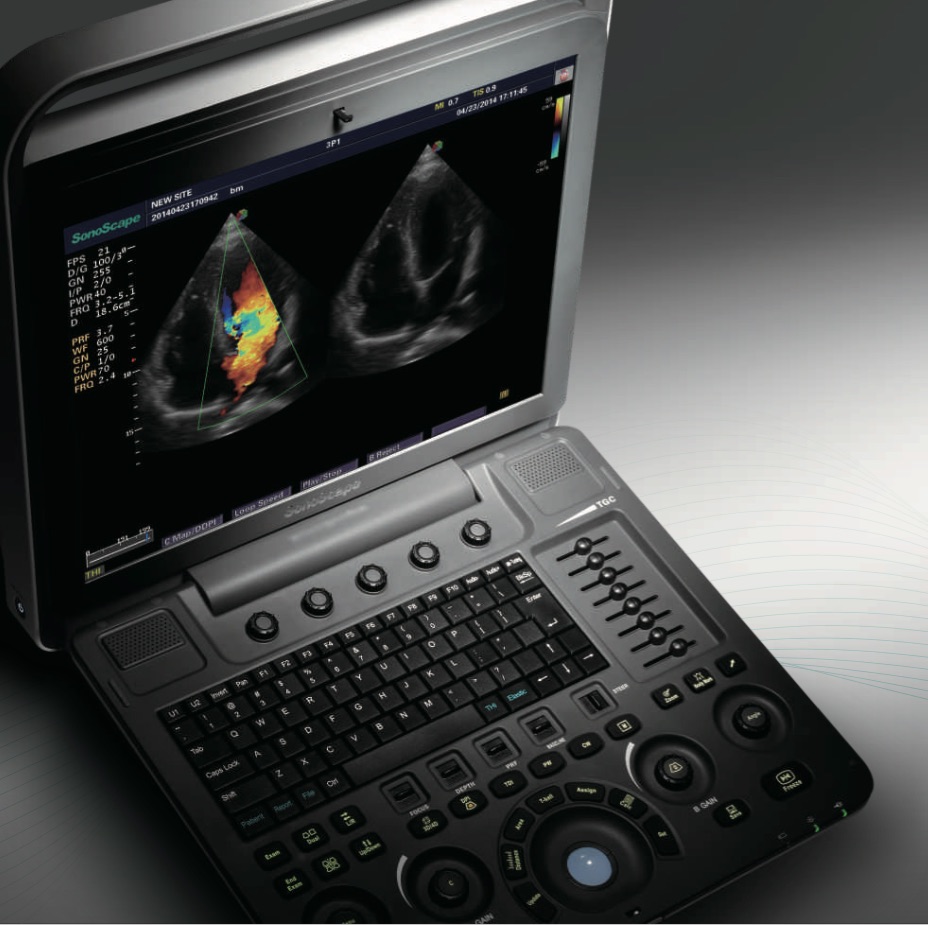

Prijenosni ultrazvuk SonoScape S9 Pro

Šifra: UZ1229

Do 19.908€ (150.000kn)

Tehničke karakteristike:

15″ zaslon visoke rezolucije
Dva priključka za sonde
USB priključci
Pohrana hard disk 500 GB
Baterija
Punjač
Modovi prikaza: B/ 2B/ 4B/ M/ THI/ CFM/ PDI/ DirPDI/ PW/ HPRF/ CW
Multi-beam technology
LGC: Lateral gain compensation
Pulse Inversion Harmonic
Compound Imaging
μ-scan (ispravljanje točkastih artefakata)
Trapezoidal Imaging
2D Panoramic Imaging
Color Panoramic Imaging
Freehand 3D Imaging
Auto NT
Napredne opcije za kardiologiju:: TDI/ Color M/ IMT/ Steer M/ Auto EF
Stress Echo
Static 3D
4D
C-xlasto: Strain elastografija
VIS-Needle: poboljšana vidljivost igle u tkivu
DICOM 3.0: Store/C-Store/Worklist/MPPS/ Print/ Q/R
M-Tuning: optimizacija slike jednim pritiskom tipke
Težina: 7,8 kg
Dimenzije – sklopljen:
- 357 x 137 x 391 mm

Opcija:

EKG paket (Hardware/ Software/ Kablovi)
Nožna pedala
Transducer extender (3 priključka za sonde)
Zaštita za tipkovnicu

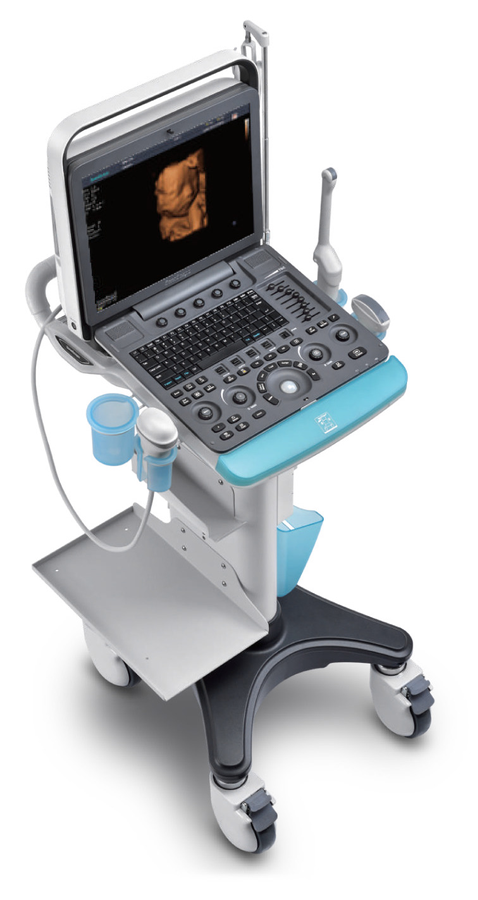

Kolica podesiva po visini
Kofer

Dostupne sonde:

Linearna sonda L742(Vascular, Small parts, MSK etc.), 4-16MHz/ 38mm
Linearna sonda L743(Vascular, Small parts, MSK etc.), 4-16MHz/ 46mm
Linearna sonda L752(Vascular, Small parts, MSK etc.), 4-16MHz/ 52mm
Linearna sonda 10L1 (Vascular, Small Parts, MSK etc.), 4-16MHz/ 36mm
Konveksna sonda 3C-A (Abdominal, Obstetrics, Gynecology), 1.0-7.0MHz/ R50mm
Konveksna sonda C353 (Abdominal, Obstetrics, Gynecology), 2-6.8MHz/ R55mm
Konveksna sonda C322(Abdominal Biopsy), 2-6.8 MHz/ R20mm
Konveksna sonda C542 (Abdominal, Pediatrics), 3-15 MHz/ R40mm
Mikrokonveksna sonda C613(Cardiology, Pediatrics), 4-13 MHz/ R14mm
Sektorska sonda 4P-A (Cardiac, Transcranial), 1.0-5.4MHz
Sektorska sonda 5P2 (Cardiac, Transcranial, Pediatric), 2-9MHz
Sektorska sonda 8P1 (Cardiac, Transcranial, Infant), 4-12MHz
Endokavitalna sonda 6V1 (Gynecology, Obstetrics, Urology), 3-15MHz/ R11mm
Endokavitalna sonda 6V3 (Gynecology, Obstetrics, Urology), 3-15MHz/ R10mm
Endokavitalna sonda 6V1A (Gynecology, Obstetrics, Urology), 3-15MHz/ R11mm (Vaginal Dilator: EDVS)192 elements endocavity 6V7 (Gynecology, Obstetrics, Urology), 3-15MHz/ R10mm
Linearna sonda 10I2 (Intra-operative), 4-16 MHz/ 25mm
Linearno laparoskopska sonda LAP7 (Intra-operative), 3-15MHz/ 40mm
Volumno konveksna sonda VC6-2 (Obstetrics, Abdominal, Gynecology), 2-6.8MHz/ R40mm
PWD 2.0 (Cardiac, Transcranial), 2.0Mhz
CWD 2.0 (Cardiac, Transcranial), 2.0MHz
CWD 5.0 (Cardiac, Transcranial), 5.0MHz
Trans-ezofagealna sonda MPTEE (Cardiology), 4-13 MHz
Trans-ezofagealna sonda MPTEE Mini (Cardiology, Pediatric), 4-13 MHz
Transrektalna sonda EC9-5 (Urology), 3-15 MHz/ R8mm
Sonda biplane BCL10-5 (Urology), Convex 3.9-11 MHz/ R10mm, Linear 6-15 MHz/ 60mm
Sonda biplane BCC9-5 (Urology), 3.9-11 MHz/ R10mm
