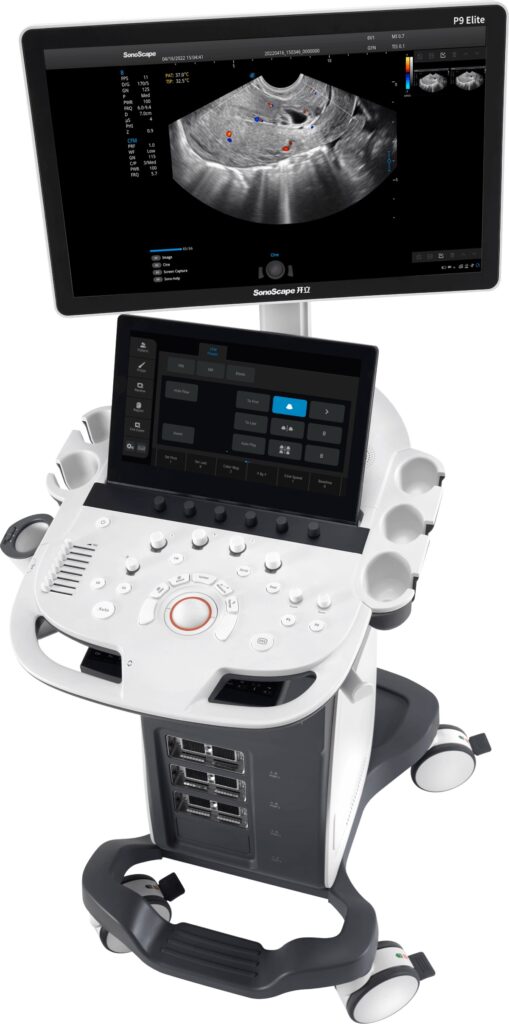

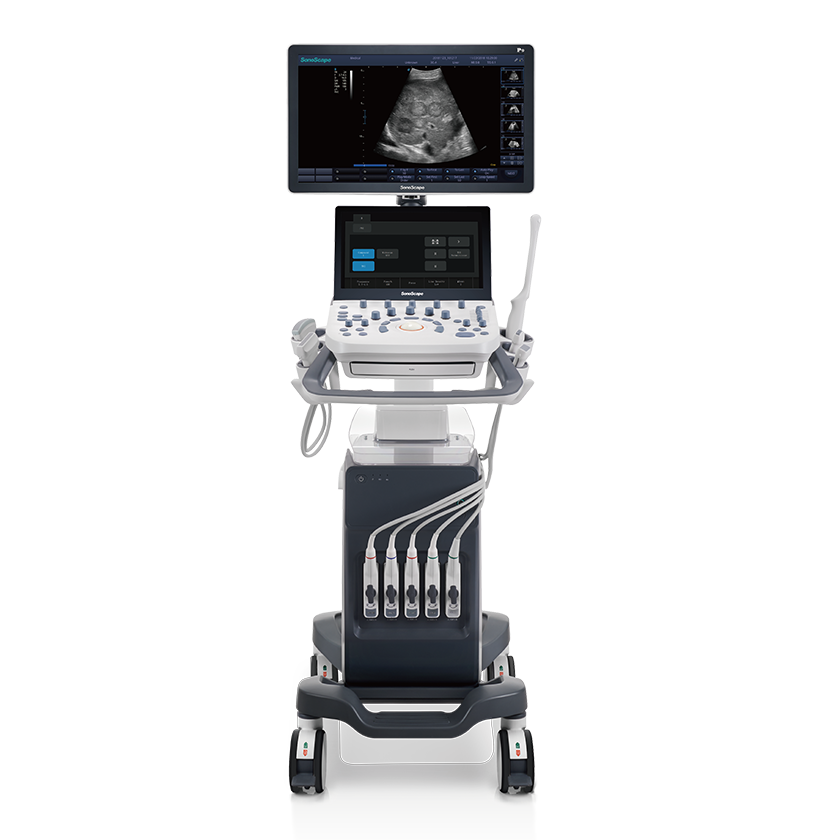

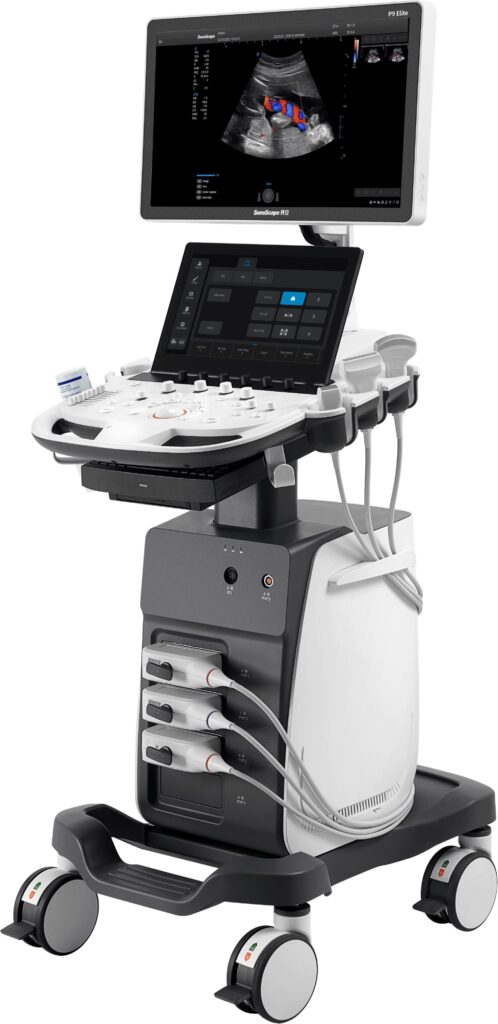

Ultrazvuk SonoScape P9 – novi model!

Šifra artikla: UZ1228

Tehničke karakteristike:

  • 21,5″ LED zaslon visoke rezolucije
  • 13,3″ zaslon osjetljiv na dodir
  • Upravljačka ploča
  • Pet priključaka za sonde (tri aktivna)
  • Pohrana HDD 500GB
  • Modovi prikaza: B (2B & 4B), CFM, M, PDI/DPDI, PW, THI, PHI
  • B/C Dual Live
  • Duplex
  • Triplex
  • 2D Steer
  • Compound imaging
  • μ-scan (ispravljanje točkastih artefakata)
  • One-Key Optimization (automatska optimizacija za 2D / M / PW)
  • Zoom
  • Scr-Zoom (One-Key Full Screen Display)
  • Biopsy Guide
  • PW Auto Trace
  • TEI Index
  • EKG software
  • Standby Mode
  • DICOM 3.0: Store / C-Store / Worklist / MPPS / Print / SR / Q&R
  • Dimenzije:
    • 751 x 518 x 1405 mm

Opcije:

  • Extended Keyboard
  • WiFi
  • EKG – Hardware / Cables
  • LGC (Lateral Gain Compensation)
  • Continuous Wave Doppler Imaging
  • SR Flow
  • Color M Mode
  • Anatomic M Mode
  • Tissue Doppler Imaging
  • Widescan: Linear Extended
  • Widescan: Convex Extended
  • Auto IMT
  • B Mode Panoramic Imaging
  • VIS-Needle: poboljšana vidljivost igle u tkivu
  • Bluetooth
  • Video printer
  • Nožna pedala
  • Baterija

Dostupne sonde:

  • Linearna sonda L741 (Vascular, Small Parts, MSK etc.), 4.0-16.0MHz/ 46mm
  • Konveksna sonda 3C-A (Abdominal, Obstetrics, Gynecology), 1.0-7.0MHz/ R50mm
  • Mikrokonveksna sonda C613 (Cardiology, Pediatrics), 4.0-13.0MHz/ R14mm
  • Konveksna sonda C322 (Abdominal Biopsy), 2-6.8 MHz/ R20mm
  • Sektorska sonda 3P-A (Cardiac, Transcranial), 1.0-6.0MHz
  • Sektorska sonda 2P1 (Cardiac, Transcranial), 1.0-6.0MHz
  • Sektorska sonda 7P-B (Cardiac, Transcranial), 2.0-9.0MHz
  • Endokavitalna 6V1 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz/ R11mm
  • Endokavitalna EC9-5 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz/R8mm
  • Linearna sonda 10I2 (Intra-operative), 4.0-16.0 MHz/ 25mm
