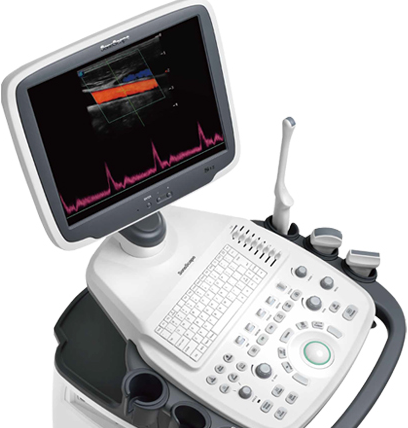

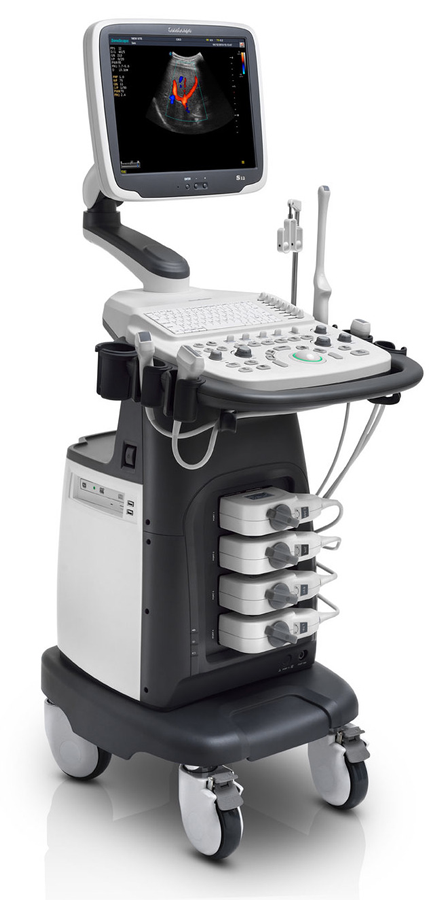

Ultrazvuk SonoScape S12

Tehničke karakteristike:

• 15″ LED zaslon visoke rezolucije
• Četiri priključka za sonde
• DVD/CD snimač
• USB priključci
• Pohrana hard disk 500 GB
• Modovi prikaza: B/ 2B/ 4B/ M/ THI/ CFM/ PDI/ DirPDI/ PW/ CW/ HPRF
• LGC: Lateral gain compensation
• Compound Imaging
• Pulse Inversion Harmonic
• Trapezoidal Imaging
• μ-scan (ispravljanje točkastih artefakata)
• Multi-beam technology
• IMT Measurement
• Auto NT
• Freehand 3D Imaging
• Auto EF
• 2D Panoramic Imaging
• Static 3D
• 4D
• VIS-Needle: poboljšana vidljivost igle u tkivu
• M-Tuning: optimizacija slike jednim pritiskom tipke
• DICOM 3.0: Store/C-Store/Worklist/MPPS/ Print/ Q/R
• Težina: 60 kg
• Dimenzije:
  • 685 x 520 x 1311 mm

Dodatne opcije:

• AMM /TDI /Color M
• EKG paket (Hardware/ Software/ Kabeli)
• Video printer
• Nožna pedala
• Baterija

Dostupne sonde:

• Linearna sonda L741 (Vascular, Small Parts, MSK etc.), 4-16 MHz/ 46mm
• Linearna sonda L742 (Vascular, Small parts, MSK etc.), 4-16MHz/ 38mm
• Konveksna sonda 3C-A (Abdominal, Obstetrics, Gynecology), 1.0-7.0MHz/ R50mm
• Konveksna sonda C344 (Abdominal, Obstetrics, Gynecology), 2-6.8MHz/ R40mm
• Konveksna sonda C322 (Abdominal Biopsy), 2-6.8 MHz/ R20mm
• Volumna konveksna sonda VC6-2 (Obstetrics, Abdominal, Gynecology), 2-6.8MHz/ R40mm
• Mikrokonveksna sonda C613(Cardiology, Pediatrics), 4-13 MHz/ R14mm
• Endokavitalna sonda 6V1 (Gynecology, Obstetrics, Urology), 3-15MHz/ R11mm
• Endokavitalna sonda 6V1A (Gynecology, Obstetrics, Urology), 3-15MHz/ R11mm (Vaginal Dilator: EDVS)
• Endokavitalna sonda 6V7 (Gynecology, Obstetrics, Urology), 3-15MHz/ R10mm
• Transrektalna sonda EC9-5 (Urology), 3-15 MHz/ R8mm
• Sektorska sonda 2P1 (Cardiac, Transcranial), 1-6MHz
• Sektorska sonda 5P1 (Cardiac, Transcranial, Pediatric), 3-9MHz
• Linearna sonda 10I2 (Intra-operative), 4-16 MHz/ 25mm
• Sonda biplane BCC9-5 (Urology), 3.9-11 MHz/ R10mm
